Frequently Asked Questions

Note: Performing a Hard Reset of Your Device

Many common failure modes can be resolved by performing a hard reset of the device. This is achieved by holding down the button for 10-30 seconds or until the LEDs light up. The initial button press/hold will cause the LEDs to indicate current battery life. Continue holding down the button until the LEDs light up and then let go. This will not delete any data on the unit or change the configuration, it just reboots it.

Hardware

How many sensors are in an enDAQ and how accurate are they?
  1. Main triaxial accelerometer
  2. Secondary triaxial accelerometer (not available on -D40 and -D16 variants)
  3. Orientation sensor
  4. Gyroscope
  5. Temperature
  6. Pressure
  7. Humidity
  8. Light
  9. Microphone - only on W
  10. GPS - only on W

There are typically 2 triaxial accelerometers, 2 temperature, 2 pressure, humidity, light, and an orientation (gyroscope or quaternions) sensor. More information on the specific sensors (including the actual part number of the sensor) is available in our Embedded Sensor Specifications article

How long does the battery last?

This depends on the sample rates used, triggering conditions, age of the battery, and temperature.  Our battery specifications article provides more details and includes a calculator to estimate battery life depending on settings applied.

How accurate is the enDAQ sensor?

This is a little more difficult to answer than one may expect.  An accelerometer will have different specifications that will affect "accuracy."  These include noise, resolution, non-linearity, temperature sensitivity, and frequency response.  But frequency response has the highest impact; so as long as the frequency of the vibration is within the rated range for the specific sensor the device should be within 5%.  On the piezoelectric accelerometer there will be a low-frequency negative error.  And on all accelerometers as the frequency approaches resonances (either within the sensor, or due to case construction).  All internal accuracies get trumped however by mounting.  If the device (or any accelerometer) is not mounted correctly you can experience grossly wrong results.  We wrote a blog on mounting that provides more insight on this impact on accuracy.

Detail
The tables in our Embedded Sensor Specifications article provide the broadband noise levels of the accelerometers; but some users are also interested in the noise vs frequency level.  The following three plots are FFTs of each of the main accelerometer types when recording in our sensor.  There are some frequencies that will appear in the FFT because of the noise from the accelerometer and/or sampling electronics and are not characteristics of your vibration/shock environment.

ADXL
An FFT of the ADXL345 (digital capacitive accelerometer) shows relatively good/low broadband noise levels.  There is a noticeable spike around 25 Hz that appears inherent to the digital component. This data is with a sample rate of 200 Hz, a higher sample rate will see harmonics of this 25 Hz frequency component repeating at a similar level of ~0.001g.

3255A
Data from the 3255A accelerometer (piezoresistive accelerometer) is shown.  There is known frequency around 25 Hz, and then the harmonics, in every component/axis that is a result of the on-board programmable gate array doing the temperature compensation. It’s a characteristic of this accelerometer.

832M1
The piezoelectric accelerometer has no inherent noise issues; but the enDAQ sensor's electronics introduces a small amount of noise when saving to disk.  This frequency is about 1/4000 th of the sampling frequency.  Midé is hoping to improve this in future releases.

When the battery is about to die and the device shuts down, will it save the data?

Yes, the sensor has a lot of protections and checks in place to sense the battery voltage dropping and will then close out the file beforehand. That being said, there are occasions where the battery voltage will drop too quickly and the file may not get closed out. This can result in a corrupt file that often can be fixed by Mide if need be. To help mitigate this, we recommend using recording limits and re-trigger mode to be continually closing files and creating new ones through a particularly long test.

Can the battery be replaced?

The batteries in our S2, S3, and S4 models cannot be replaced because the bottom volume of the recorder is potted with an epoxy to mechanically stiffen the assembly and directly couple the accelerometers with the bottom of the enclosure. This potting extends into the volume where the battery is located so it cannot be replaced.

The S5 models have a different battery and battery location so the battery can be replaced in these units.

Please note that all of our models can operate while plugged into power so, if you have a model with a battery that cannot be replaced, your device will not be completely useless.

Do keep in mind that depending on use, charge cycles, temperature etc. the battery lifetime is 2 to 3 years.

What happens when a piezoelectric accelerometer experiences an acceleration level outside its measurement range?

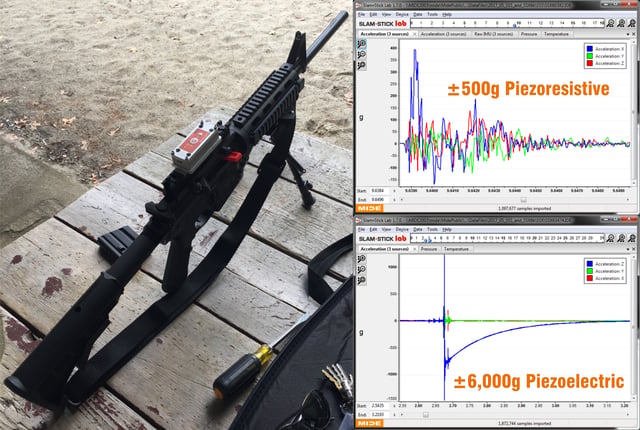

This can cause the charge amplifier within the accelerometer to saturate which will result in a logarithmic decay following the event.  Our blog on piezoelectric accelerometers goes into more detail on why this happens.  Sometimes this occurs because of high-frequency vibrations which can excite resonances inside the accelerometer.  In this case, you may need some mechanical damping.  The piezoresistive accelerometers are the best for shock testing however as they do not experience this issue and even have internal gas damping to prevent resonance issues.  PCB Piezotronics also has a nice application note with more information on this "issue" with piezoelectric accelerometers. Below is an image showing some data captured by two different devices with piezoelectric and piezoresistive accelerometers to show the difference.


Software

Are there any example files to download to help evaluate the software and products?

Yes! We've sold over 10,000 data recorders that have generated many, many recordings. In our Community Forum, posts tagged with IDE include raw data that can be easily downloaded to help get a feel for not only the software, but the devices capable of generating these recordings. Here's the link to the community forum's posts tagged with IDE.

Lab

enDAQ Lab Software does not Run

This is likely due to a security issue; you may have to contact your IT department.  You may need to change your apps settings in Microsoft to allow you to run apps from "anywhere" as shown if you receive an alert that the software wasn't downloaded from the Microsoft Store. This error is due in part to the fact that enDAQ Lab does not have an installer. It is a “portable” application, which can simply be copied to and run from anywhere: external disks, flash drives, recorders, etc. Lastly as a reminder that currently, the enDAQ Lab only runs on Windows computers.

How do I download and install the Lab Software?

enDAQ Lab is completely free, all that is required is to complete a simple form that will ask for your email address and your test experience. Here is the link to download online here. The current release of the software requires a 64-bit version of Microsoft Windows.

Once downloaded, the software is completely self-contained; it requires no installation. Just double-click the executable and away you go! If you are evaluating the products and software, be sure to download an example recording file to help give you a chance to explore.

How do I export and convert data to MATLAB or other analysis software from enDAQ Lab?

enDAQ and Slam Stick devices record data in enDAQ's custom file format, a format designed to completely self-describe the device and the data within it. This article provides an overview on how to use the software to convert IDE files to MAT and other file formats such as TXT and CSV.

Another option is our enDAQ Analyzer software which is written in MATLAB. This software converts IDE files to a MAT format and then performs some analysis on the files. More information is available here.

What is the current version of the Lab software?

The most up-to-date release version is 2.0.3 which was released in August 2020. There are typically 4 new software releases a year. Analyzer

How do I download and install the Analyzer software?

The enDAQ Analyzer is completely free, all that is required is to complete a simple form that will ask for your email address and your test experience. Here is the link to download. Once downloaded, the software requires some installation which includes the MATLAB runtime. More information is available in this user guide (link to the Analyzer user guide page).

Why does it take so long to initially open?

The first time running the application on a computer (or after restarting the computer) you will experience an agonizingly long wait after initially starting. There will be a splash screen that appears to warn you that there will be a delay but please keep in mind that it can take several minutes to open the first dialog box. After the first time running the application, the computer caches certain information to make this much faster. We looked into speeding up this process but it is unfortunately outside our control because it is a MATLAB compiled program.

What is the current version of the Analyzer software?

The most up-to-date release version is 2.1e which was released in July 2020.

VibrationData ToolBox

How do I download and install the Analyzer software?

The Vibration Data Toolbox is free to download. All that is required is to complete a simple form that will ask for your email address and your test experience. Here is the link to download. More information is available in this user guide (link to the user guide article here).

What type of support do you provide?

Because most of the code was developed by Tom Irvine it is hard for us to provide too much support on the underlying analysis functionality and theory behind it. Our software team built the import tool and compiled the toolbox so if you are having issues with installation or importing data we would be happy to help. Anything beyond that though will have to be handled by going to the community forum or online search in general. Tom does cover the analysis theory in a lot of his webinars and in his handbook he published with us.

enDAQ Cloud

Coming Soon!


Troubleshooting

Why does the enDAQ measure +1g at rest, shouldn't it be -1g?

This is a good question and caused some initial panic internally at Mide when we first introduced units with the DC accelerometer. It's very counter-intuitive at first but let's try and explain it! The short answer is that accelerometers measure a deviation in acceleration from free-fall. So at rest, there is +1g acting upward to keep it still and overcome Earth's gravitational acceleration downward.

Accelerometers have a suspended proof mass and they measure the strain on springs holding that proof mass. When the device is on your desk the proof mass isn't perfectly centered so it can see that shift in location. When in free fall the proof mass becomes centered and therefore it measures 0g acceleration... at least that's how I've explained it to myself. There's a bit more formal of an answer related to Einstein's "equivalence principle." Below is an excerpt from Wikipedia that has a bit more information.

An accelerometer measures  proper acceleration, which is the acceleration it experiences relative to freefall and is the acceleration felt by people and objects.[2] Put another way, at any point in spacetime the equivalence principle guarantees the existence of a local inertial frame, and an accelerometer measures the acceleration relative to that frame.[3] Such accelerations are popularly denoted g-force; i.e., in comparison to standard gravity.

An accelerometer at rest relative to the Earth's surface will indicate approximately 1 g  upwards, because any point on the Earth's surface is accelerating upwards relative to the local inertial frame (the frame of a freely falling object near the surface). To obtain the acceleration due to motion with respect to the Earth, this "gravity offset" must be subtracted and corrections made for effects caused by the Earth's rotation relative to the inertial frame.

The reason for the appearance of a gravitational offset is Einstein's  equivalence principle,[4] which states that the effects of gravity on an object are indistinguishable from acceleration. When held fixed in a gravitational field by, for example, applying a ground reaction force or an equivalent upward thrust, the reference frame for an accelerometer (its own casing) accelerates upwards with respect to a free-falling reference frame. The effects of this acceleration are indistinguishable from any other acceleration experienced by the instrument, so that an accelerometer cannot detect the difference between sitting in a rocket on the launch pad, and being in the same rocket in deep space while it uses its engines to accelerate at 1 g. For similar reasons, an accelerometer will read zero during any type of free fall. This includes use in a coasting spaceship in deep space far from any mass, a spaceship orbiting the Earth, an airplane in a parabolic "zero-g" arc, or any free-fall in vacuum. Another example is free-fall at a sufficiently high altitude that atmospheric effects can be neglected.

The Device Appears “Frozen” and is Unresponsive

If the unit is not responding to button presses and/or displays a constant LED indication (even when unplugged from power) the software is hanging up.  Try a hard reset by holding down the button for 10 seconds. If this doesn’t resolve the issue, contact Midé for assistance.

No LED Activity after Pressing the Button

This may be due to the battery being depleted and therefore the device requires charging.  Also try a hard reset by holding down the button for 10 seconds. If this doesn’t resolve the issue, contact Midé for assistance.

There are No New Recording Files on the Device

This question comes up often.  Remember the device will never start recording or looking for a trigger until the button is pressed regardless of the trigger configuration. Another possible explanation is that the trigger conditions were never met.  Also, check to ensure there is storage space available on the device (it appears as a standard USB flash drive).  The battery could have also died that prevented the unit from recording.  Finally, make sure to read the Recording File Naming & File Structure Section to understand how files are named and stored on the device.  If the problem persists, contact Midé for assistance.

Data File is Corrupted or Does Not Display Data

The device may have suddenly run out of power and therefore did not close out the file properly.  This can happen rarely due to battery dips; but can also happen from sudden and extreme impact events directly to the device, water damage, and rapid temperature swings.  When the file is corrupt you may not be able to open it, or it is more likely that the file will open but only display a few seconds worth of data even though the file should have minutes or even hours.  Unfortunately, this means that the few seconds of data are being repeated throughout the file due to the corruption.

There are a couple of ways to prevent this from happening in the future:

  • Update your firmware - we are always adding more functionality to try and handle this condition better.  See here for more information.
  • Record for shorter time periods and retrigger - this will ensure that if there is a corruption again, it only affects the last file in your test; not the full duration.  We'd recommend setting 15-minute recording intervals with a 1-second delay, then re-trigger.  See here for more information.
  • Connect to external power - the battery may be older and/or the temperature range may be making it especially susceptible to failure.  We'd recommend using an external power source if this is the case.
  • You may need a new unit - the battery is, unfortunately, a primary driver of failure.  Rechargeable batteries age with time, temperature, and usage.  It may be time to replace the device.  See here for more information on battery age.

When the Device Initially Plugs into Power, only the red LED Flashes

This indicates an error code.  Take note of the number of times the LED flashes and contact Midé for assistance.

The Device does not appear in “My Computer” when Connected

Wait several moments to ensure that the computer isn’t first trying to “recognize” the device. Then try to ensure that the USB cable is properly connected, the LED should turn on when connected to the computer or power. Also, this can happen when the device is still in the recording or trigger mode. Another possibility is that your computer’s security software is blocking the device, please try a different computer and/or contact your IT department.

enDAQ Lab Software does not Run

This is likely due to a security issue; you may have to contact your IT department.  You may need to change your apps settings in Microsoft to allow you to run apps from "anywhere" as shown if you receive an alert that the software wasn't downloaded from the Microsoft Store. This error is due in part to the fact that enDAQ Lab does not have an installer. It is a “portable” application, which can simply be copied to and run from anywhere: external disks, flash drives, recorders, etc. Lastly as a reminder that currently, the enDAQ Lab only runs on Windows computers.

I Work for the Navy and I need the Correct Configuration File

There is a specific configuration file recommended by NAVAIR for testing on F/A-18s that disables all sensors besides the pressure channels.  It is attached here.

Microsoft Windows is Prompting to Scan and Fix the enDAQ (old Slam Stick) Drive

Some Windows versions present this dialog for some drives not formatted by Windows.  This message is harmless; the user may either proceed with or cancel the scan.
